Solar Rigid PVC Conduit

Ctube solar conduit is perfectly suited for protecting and managing electrical cables in residential and commercial PV installations. Its design ensures cable safety from environmental factors and keeps them hidden, preserving the property's appearance

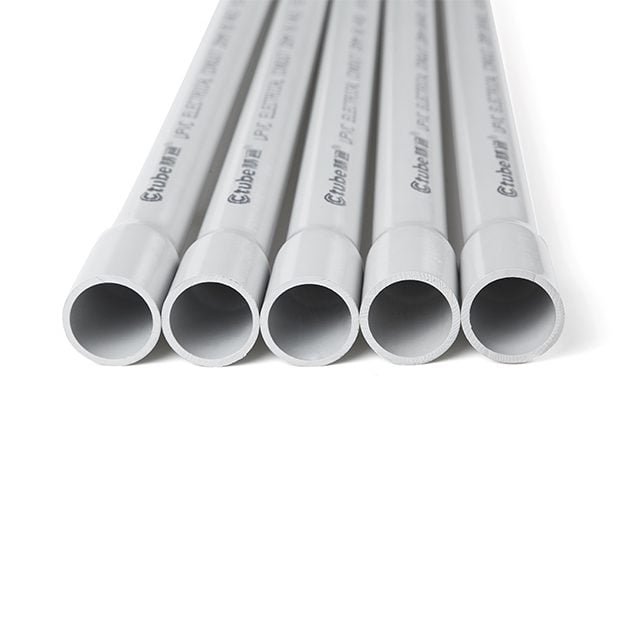

Ctube 20-150mm Heavy Duty Solar Rigid PVC Electrical Conduit

– Best for solar power utilities and projects.

– Heavy-duty resistant to max 1250 Nt/5cm compression.

–Certified by AS/NZS 2053, CE, IEC61386, UL94 5VA

– Resistant to impact, sunlight, and fire.

– Glossy and smooth surface and interior.

– Durable non-conductive PVC will not rust or corrode

– Suitable for both above and below ground applications

Product Performance

UV Protection

Considering that outdoor installation of solar power projects, you need reliable electrical conduits to protect fragile wires from damage, so professional solar conduits are your best choice.

Non-metallic Conduit

Once the wire pipe rusts after long-term use and corrodes the wire, it may Ctube Solar PVC conduits have the advantages of insulation, corrosion resistance, heat insulation and rust prevention.

V0 Fire Rating

Effectively prevent the spread of fire and maximize the safety of life and property.

Resistance to Compression 1250Nt /5cm

It makes it more convenient for you during the construction process, and you don’t have to worry about cracking and damage caused by quality problems of electrical conduit pipes during use.

Product Specifications

Brand:	Ctube	OEM:	Available
Material:	PVC	Length:	Customized
Thickness:	Customized	OD Range:	20-150mm
Certification:	AS/NZS 2053, UL 651, IEC61386, ISO, ASTM, UL94	Color:	Grey
Fire Resistance:	V0	UV Resistance:	Yes
Conductivity:	Insulated	Hardness:	Rigid & impact-resistant
Packing:	Plastic bags & PE films	Sample:	Free
Country:	China	Temperature rang:	-15℃ to +105℃

Product Size Chart

Product Code	Nominal Size	Min W.T.	Max W.T.	Length
CT-HDSOLRCY20	20mm	2.3mm	2.6mm	4m
CT-HDSOLRCY25	25mm	2.5mm	2.8mm	4m
CT-HDSOLRCY32	32mm	2.7mm	3mm	4m
CT-HDSOLRCY40	40mm	3.1mm	3.4mm	4m
CT-HDSOLRCY50	50mm	3.4mm	3.9mm	4m
CT-HDSOLRCY63	63mm	3.9mm	4.5mm	4m
CT-HDSOLRCY80	80mm	4.6mm	5.3mm	4m
CT-HDSOLRCY100	100mm	5.9mm	6.7mm	4m
CT-HDSOLRCY125	125mm	7.2mm	8.1mm	4m
CT-HDSOLRCY150	150mm	8.3mm	9.3mm	4m

Haven’t Found The Products For Your Project?

Different businesses have distinct requirements for their projects or product manufacturing needs. Ctube’s customization solution is tailored to precisely address your company’s specific needs.

FAQ

1.What is your MOQ?

Actually, It has always depend on your order quantity, different items have different minimum quantity . As for our conduits, it should be 3000 meters for big size ; and 5000 -10000 meters for small size. For junction box and other boxes ,the moq may be 5000 pcs and the fittings would be more than 10,000pcs

2.What are the lead times normally?

Normally, the time of delivery is around 15-30 days. It depend on your order quantity. If you order a big quantity, it will take more time to finish.

3. How about the samples?

Yes, We could send you the sample and we recommend that you try our conduit before you order them. This ensures that you get the right color, size and the design you need.
