The Ultimate Guide to Solar Panels: From Basics to Installation

1. Introduction

1.1 Brief History and Evolution

As we navigate through the complexities of modern energy solutions, solar energy stands out as a beacon of sustainability and innovation.

Solar energy has been harnessed for thousands of years, beginning with ancient civilizations using sunlight to heat water and crops. However, the development of modern solar technology began in the mid-20th century.

In 1954, scientists at Bell Labs created the first practical photovoltaic (PV) cell, marking the birth of contemporary solar panels. Over the decades, advancements in materials and technology have drastically improved efficiency and reduced costs, making solar energy more accessible than ever before.

1.2 Importance and Benefits of Solar Energy

Today, solar energy is a crucial part of the global effort to reduce carbon emissions and combat climate change. It offers numerous benefits:

• Environmental Impact: Solar power is a clean, renewable energy source that reduces reliance on fossil fuels and decreases greenhouse gas emissions.

• Economic Advantages: Installing solar panels can lead to significant savings on energy bills and increase property value. Many regions also offer financial incentives and rebates to make solar more affordable.

• Energy Independence: By generating your own electricity, you reduce your dependence on the grid and gain more control over your energy supply.

• Sustainability: Solar energy is abundant and sustainable, with the sun providing more energy in one hour than the entire world uses in a year.

1.3 Purpose of the Guide

The goal of this guide is to provide a comprehensive resource for anyone interested in understanding and installing solar panels. Whether you’re a homeowner considering a solar upgrade or simply curious about how solar technology works, this guide will cover all the essential aspects.

2. Understanding Solar Panels

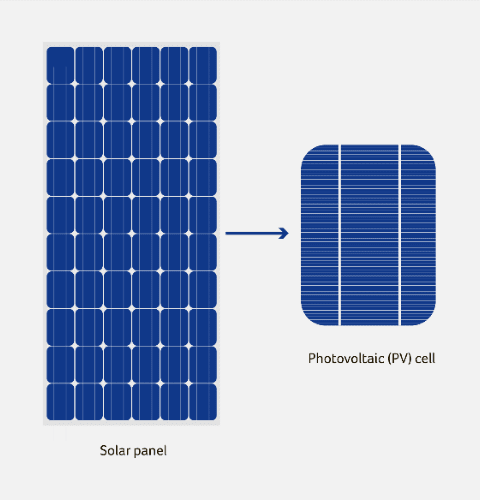

2.1 What Are Solar Panels?

Solar panels, also known as photovoltaic (PV) panels, are devices designed to convert sunlight into electrical energy. They are made up of many individual solar cells that work together to harness the sun’s energy and generate electricity for residential, commercial, or industrial use. The core concept involves using the photovoltaic effect to produce power from light.

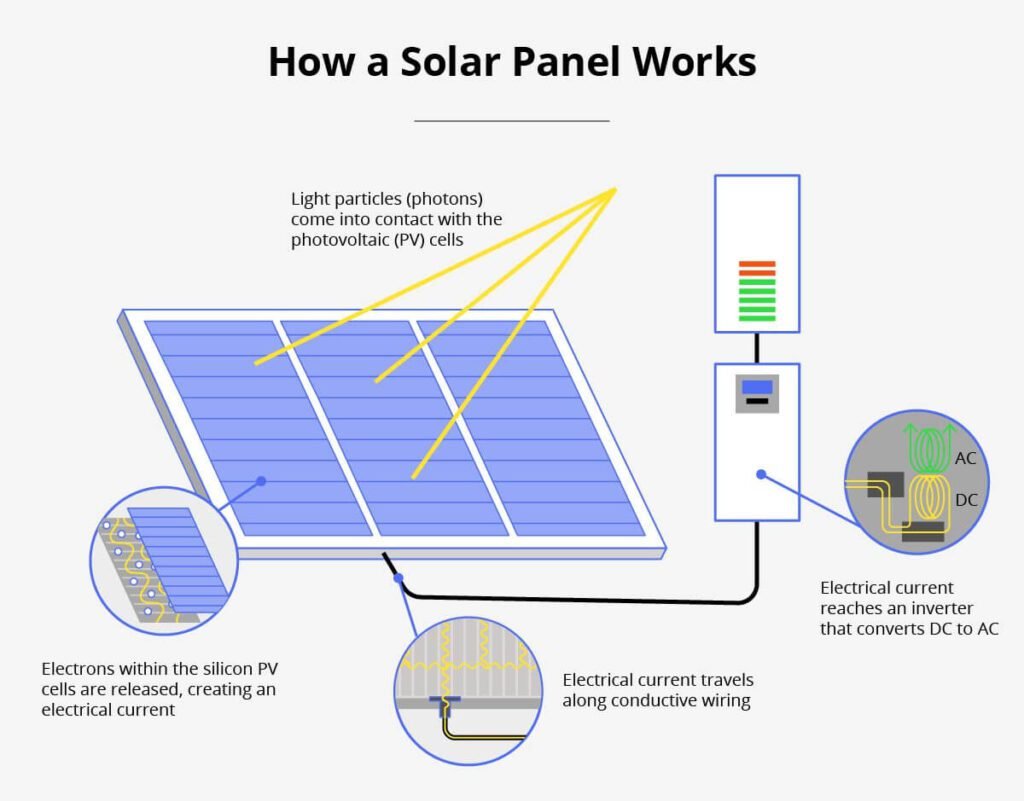

2.2 How Solar Panels Work?

The photovoltaic effect is the fundamental process that allows solar panels to generate electricity. When sunlight strikes the surface of a solar cell, it excites electrons within the cell’s semiconductor material, creating an electric field. This movement of electrons produces a flow of electrical current that can be harnessed and used to power electrical devices or be stored for later use.

2.3 Components of Solar Panels

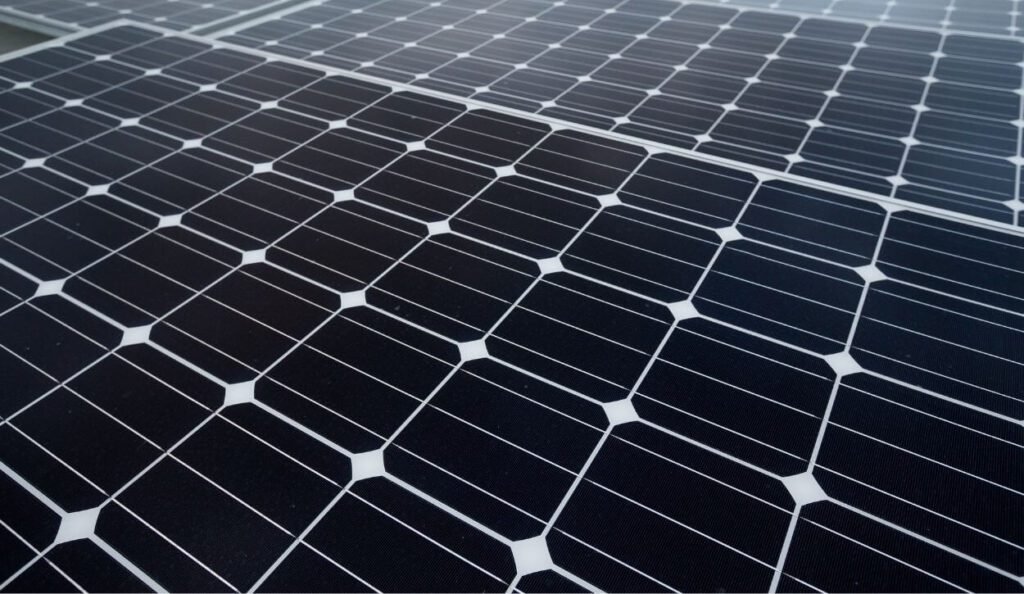

• Solar Cells: The smallest unit in a solar panel, usually made from silicon. Each cell generates a small amount of power.

• Solar Modules: Groups of solar cells connected together and encased in a protective layer. These modules are what you commonly see installed on rooftops or in solar arrays.

• Solar Arrays: Multiple solar modules connected together to form a larger system, providing higher power output and covering a larger area.

Hera are the details components of the solar panal:

• Photovoltaic (PV) Cells: These are the core components responsible for converting sunlight into electrical energy through the photovoltaic effect. They are typically made of semiconductor materials like silicon.

• Glass Layer: This protective layer is on the front of the panel. It allows sunlight to pass through to the PV cells while protecting them from environmental factors like wind, rain, and debris.

• Encapsulant: This material, often made of EVA (ethylene-vinyl acetate), surrounds the PV cells and ensures they stay in place. It also protects the cells from moisture and other external elements.

• Backsheet: Located at the back of the solar panel, the backsheet provides insulation and protects the internal components from damage and moisture.

• Frame: Usually made of aluminum, the frame provides structural support and helps protect the panel’s edges from mechanical damage.

• Bypass Diodes: These diodes prevent energy loss when some sections of the panel are shaded by allowing electricity to bypass non-functioning cells.

• Junction Box: This is where the electrical connections are housed, and it usually contains diodes that prevent backflow of electricity, improving efficiency and safety.

• Wiring: Solar panels use electrical wiring to transfer the generated electricity from the PV cells to the inverter or directly to a battery storage system.

3. Three types of solar panels

3.1 Monocrystalline Solar Panels

Monocrystalline solar panels are the most popular and efficient type of solar panels used in residential and commercial installations today.

They are produced using the Czochralski method, where a seed crystal of silicon is placed into molten pure silicon, forming a single silicon crystal, or ingot. This ingot is then sliced into thin wafers, which are used to create solar cells.

• PERC Cells (Passivated Emitter and Rear Contact): A variation of monocrystalline panels that increases efficiency by enhancing the flow of electricity through the cells.

• Bifacial Solar Panels: These can capture sunlight on both sides of the panel, making them ideal for commercial, ground-mounted installations.

• Performance: Monocrystalline panels have the highest efficiency ratings, typically ranging from 17% to 22%, and offer power output ratings from 320 watts to 375 watts or higher. Their high efficiency stems from the pure silicon structure, which allows electrons to move more freely. They are an excellent choice for rooftops with limited space, as fewer panels are needed to meet energy needs.

• Appearance: Monocrystalline panels have a sleek, all-black design that blends well with rooftops. However, due to the way the solar cells are shaped, there can be visible white space between the cells, though some manufacturers have minimized this by using black backing materials.

• Cost: Monocrystalline panels are the most expensive due to the complex manufacturing process and high efficiency. However, the price gap between monocrystalline and polycrystalline panels has decreased over time.

• Lifespan: They generally have the longest lifespan among solar panel types, making them a long-term investment for homeowners looking to maximize their return on investment.

3.2 Polycrystalline Solar Panels

Polycrystalline panels, also called multicrystalline panels, are made from silicon like monocrystalline panels but through a different cooling process that results in multiple silicon crystals. This gives the panels a less uniform appearance and somewhat lower efficiency compared to monocrystalline panels.

• Performance: Polycrystalline panels have lower efficiency, typically between 15% and 17%. This is because the electrons in polycrystalline cells have more difficulty flowing freely due to the presence of multiple silicon crystals. As a result, polycrystalline panels have lower power output ratings, generally ranging from 240 watts to 300 watts. However, newer technologies have helped narrow the performance gap slightly.

• Appearance: The distinguishing feature of polycrystalline panels is their blue, marbled look caused by the multi-crystal structure. Many homeowners find this less aesthetically pleasing compared to the sleek black design of monocrystalline panels.

• Cost: Polycrystalline panels are more affordable than monocrystalline panels, making them a budget-friendly option for those who don’t need the highest efficiency. Historically, they were the go-to choice for homeowners on a tight budget, although the price difference has decreased in recent years.

• Lifespan: While not as long-lasting as monocrystalline panels, polycrystalline panels still offer a solid lifespan and are a reliable option for residential installations.

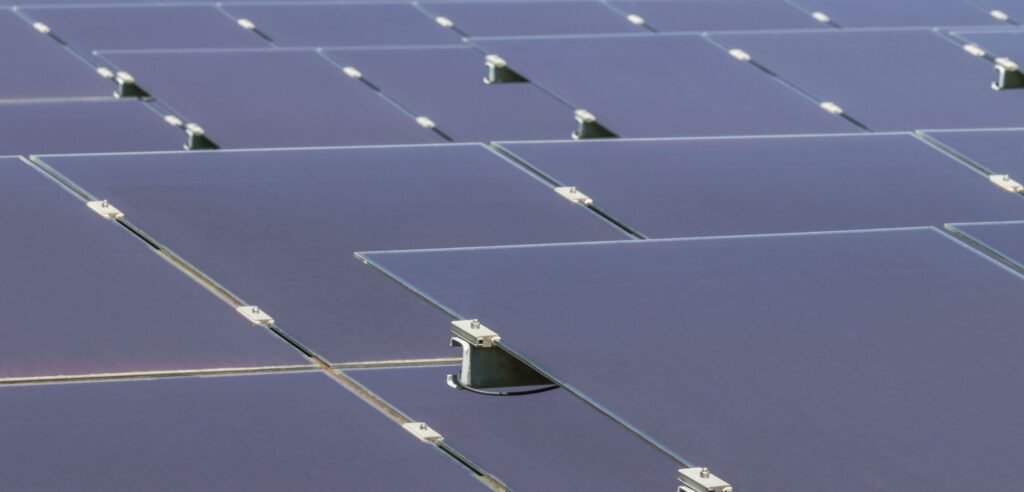

3.3 Thin-Film Solar Panels

Thin-film solar panels are mostly used in industrial and large-scale solar projects due to their low efficiency. They are made by depositing a thin layer of photovoltaic material (such as amorphous silicon, cadmium telluride, or copper indium gallium selenide) onto a substrate like glass, metal, or plastic. This process creates a flexible and lightweight panel.

• Performance: Thin-film panels have the lowest efficiency, generally between 10% and 13% for commercially available models. Research prototypes have achieved higher efficiencies, but for residential use, thin-film panels are much less effective. This low efficiency means they require significantly more space to generate the same amount of power as monocrystalline or polycrystalline panels, making them impractical for most residential applications.

• Appearance: Thin-film panels have a smooth, all-black appearance and can lay flat against surfaces, providing a sleek and unobtrusive look. They also have fewer visible busbars and less white space, which some homeowners prefer aesthetically. However, because you would need to install a large number of panels to generate sufficient electricity, their use in residential settings is rare.

• Cost: Thin-film panels are generally the cheapest to produce and install because they require less material and are easier to manufacture. However, their low efficiency and higher degradation rates mean that the long-term costs can be higher, as more panels are needed to meet energy needs, and they need to be replaced more often.

• Lifespan: Thin-film panels degrade faster than crystalline panels, which reduces their lifespan and makes them less ideal for long-term installations.

3.4 Which Solar Panel Type Is Right for You?

For homeowners who want the best performance and longevity, monocrystalline solar panels are the top choice. They offer the highest efficiency, best aesthetics, and longest lifespan, making them a solid investment despite the higher upfront cost.

Polycrystalline panels, while less efficient, are a more affordable alternative that still offers reliable performance and decent longevity, making them a viable option for those with a smaller budget.

Thin-film solar panels are best suited for large-scale or specialized applications due to their lower efficiency and faster degradation, but they can still be a good choice for certain commercial or portable uses.

3.5 Comparative Overview: Efficiency, Cost, and Lifespan

4. Step-by-Step Process of Solar Panel Production

4.1 Materials Used in Solar Panel Manufacturing

As we mention the components of solar panel above, a solar panel is composed of several key materials:

• Silicon: The primary component, used in creating solar cells that generate electricity from sunlight.

• EVA Plastic: Encapsulates and protects the solar cells.

• Glass: A protective front layer that allows sunlight to reach the cells.

• Metal Frame: Provides structure and strength to the panel.

• Junction Box & Wires: Located at the back of the panel, these connect the panel’s electrical system to other components like inverters.

4.2 How to make Solar Panel?

Step 1: Building Solar Cells The heart of any solar panel is the solar cell, a semiconductor device that generates an electric current when exposed to sunlight. These are made from silicon, which undergoes a series of transformations:

• Raw Silicon Extraction: Silicon is extracted, purified, and melted to form ingots. Monocrystalline ingots come from a single crystal, while polycrystalline ingots consist of many fragments.

• Ingot Slicing: The ingots are sliced into thin wafers, which become the foundation of the solar cell. An anti-reflective coating is applied to prevent light from bouncing off.

• Doping with Phosphorus or Boron: Phosphorus or boron is added to the wafers to alter their electrical properties, creating either p-type or n-type solar cells.

• Photovoltaic Effect: When sunlight hits these treated silicon cells, it excites electrons, creating an electric current that can be harnessed for power.

Step 2: Stringing and Soldering Solar Cells Once the cells are prepared, they are connected in series, forming strings of solar cells. For most panels, 60 or 72 cells are soldered together, creating a grid that maximizes energy capture and transfer.

Step 3: Layering with EVA and Glass The solar cell strings are encapsulated between layers of EVA plastic. This encapsulation provides insulation and prevents damage from environmental factors like moisture. A tempered glass sheet is then added on top, protecting the cells while allowing light to pass through.

Step 4: Sealing and Framing The encapsulated cells and glass are sealed by heating the layers, creating a tight, waterproof barrier. A metal frame is attached around the edges to provide structural support and protect the panel from physical impacts during installation and use.

Step 5: Installing the Junction Box A junction box is added to the back of the panel, connecting the solar cells to the electrical system. This box houses wires that allow electricity to flow to inverters or additional panels in a solar array.

Step 6: Quality Testing Before being shipped, every solar panel undergoes quality control testing. This ensures the panel can withstand mechanical stress, temperature changes, and exposure to humidity. Only after passing these rigorous tests are the panels packaged and shipped for installation.

5. Factors to Consider Before Installing Solar Panels

5.1 Assessing Your Energy Needs

5.1.1 Residential Solar Installations

• Calculating Household Energy Consumption: Review your electricity bills for a full year to understand your energy use across different seasons. Calculate your daily and monthly energy consumption in kilowatt-hours (kWh). This will guide how many solar panels you need.

• Right System Size for Homes: Based on your energy consumption and available roof space, choose a system size that can provide the energy you need. Residential solar systems typically range between 3 kW to 10 kW, depending on the home’s size, energy use, and roof space. For example, if your home consumes 30 kWh per day, and you receive about 5 hours of sunlight per day, you’ll need a system that generates around 6 kW.

5.1.2 Solar Power Plants

• Energy Generation Goals: Solar power plants are designed to meet large-scale energy production needs, ranging from megawatts (MW) to gigawatts (GW). These plants are typically used to supply electricity to the grid, serving thousands of homes or commercial facilities. The size and output of a solar power plant are determined by the region’s energy needs, local utility company requirements, and government policies.

• System Size for Solar Power Plants: Utility-scale solar power plants range from 1 MW to hundreds of MW. For example, a 10 MW plant can generate enough electricity to power approximately 1,600 homes. System size is calculated based on land availability, expected solar radiation, and total energy requirements.

5.2 Site and Location Suitability

5.2.1 Residential Solar Installations

• Roof Orientation and Sunlight Exposure: Ideally, solar panels should face south (in the northern hemisphere) or north (in the southern hemisphere) for maximum sunlight exposure. Ensure that the panels are installed at the right angle to capture the most sunlight during the day.

• Roof Condition and Structure: Your roof should be in good condition before installing solar panels, as they will last for 25-30 years. Ensure that the roof can bear the weight of the panels and the mounting hardware.

• Weather and Environmental Factors: Residential solar systems must account for local weather conditions such as snow, wind, and dust. In regions with heavy snowfall, panels should be tilted to allow snow to slide off, and in windy areas, mounting systems should be able to withstand wind loads.

5.2.2 Solar Power Plants

• Land Availability and Terrain: Solar power plants require extensive areas of land, often in regions with flat or slightly sloped terrain to maximize sunlight capture. The land must be free from significant shading caused by trees, hills, or buildings. Choosing a site near existing electrical infrastructure (like transmission lines) can also reduce costs.

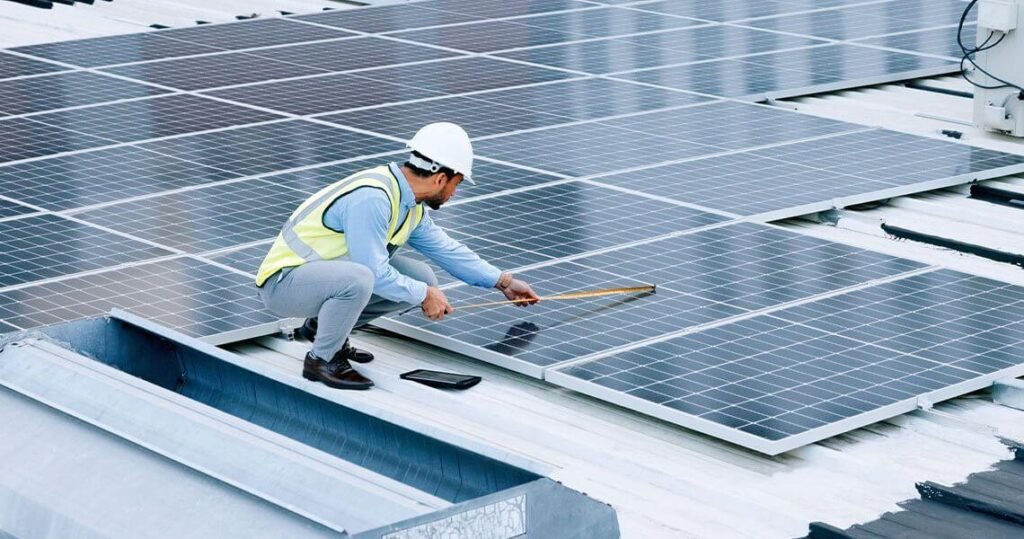

• Sunlight and Climate Conditions: Solar power plants are typically located in regions with high solar irradiance (amount of sunlight), such as deserts or areas with minimal cloud cover. The goal is to maximize energy output by capturing the most sunlight throughout the year. Locations with long sunlight hours and high solar energy potential, such as the southwestern U.S., northern Africa, or Australia, are ideal for large-scale solar plants.

• Wind and Storm Resistance: Since solar power plants span large areas, they must be able to withstand harsh weather conditions like strong winds, dust storms, or heavy rain. Engineers consider wind load, dust accumulation, and temperature effects when designing and installing large solar arrays.

5.3 Additional Infrastructure Requirements for Solar Power Plants

While homes generally only need to connect their solar system to the home’s electrical panel, solar power plants have more complex infrastructure requirements.

• Connection to the Power Grid: Solar power plants need to be connected to the regional or national electrical grid. This requires high-voltage transformers, substations, and transmission lines to efficiently transfer electricity to consumers.
• We covered the different types of systems in detail in a previous post, check out through this Link.

• Energy Storage Systems: Large solar power plants often include energy storage systems, such as large-scale battery storage, to manage intermittent power generation. These systems store excess energy produced during sunny periods and release it during cloudy weather or nighttime, ensuring a consistent energy supply.

• Maintenance and Monitoring: Solar power plants require regular maintenance and monitoring to ensure they operate at peak efficiency. Dust and debris can accumulate on panels, reducing performance, so periodic cleaning is necessary. Monitoring systems track energy production and identify potential issues, allowing for timely repairs and adjustments.

5.4 Regulatory and Permitting Requirements

5.4.1 Residential Solar Installations

Before installing a solar system at home, homeowners must navigate various local regulations and permits.

• Permits: Most local governments require building and electrical permits for solar panel installations. These permits ensure the system meets safety and code requirements.

• Incentives and Rebates: Homeowners can benefit from government incentives, such as tax credits, rebates, and net metering programs. These incentives can significantly reduce the upfront cost of installing solar panels.

5.4.2 Solar Power Plants

Utility-scale solar power plants must comply with more stringent regulations and obtain numerous permits.

• Environmental Impact Assessments (EIA): Solar power plants often require comprehensive EIAs to assess the project’s effects on the local ecosystem, wildlife, and water resources. These assessments help ensure that solar farms are built in an environmentally sustainable way.

• Zoning and Land Use: Developers must secure zoning approvals for large tracts of land designated for renewable energy production. This includes acquiring land rights and ensuring that the site is suitable for a solar facility.

• Grid Integration and Power Purchase Agreements (PPAs): Utility companies must negotiate PPAs with solar plant operators to integrate solar energy into the grid. This agreement outlines the terms for purchasing solar energy, ensuring that it fits into the overall energy mix.

6. Step-by-Step Guide to Installing Solar Panels

6.1 Understanding Solar Panel Installation Components

• Solar Panels: Photovoltaic (PV) modules that convert sunlight into electricity.

• Inverters: Convert DC (direct current) produced by solar panels into AC (alternating current) for household use.

• Mounting System: Equipment that secures the solar panels on the roof or ground.

• Battery (optional for off-grid systems): Stores excess energy generated by the system.

• Monitoring System: Allows you to track energy production and system performance.

6.2 Materials needed to install solar panels

• Solar Panels: Capture sunlight and convert it into electricity. 3 different types we have mentioned above.

• Racking/Mounting Frames: Holds solar panels securely in place on the roof or ground.

• Roof Attachments/Clamps: Fixes the racking system to the roof structure for rooftop installations.

• Inverter: Converts direct current (DC) from the panels into alternating current (AC) for home use. 3 Types we have mentioned in this post.

• Junction Boxes: Protects and encloses wiring connections.

• Combiner Box (optional for larger systems): Combines electricity from multiple panel strings into one output.
• Grounding Equipment: Safely grounds the solar system to avoid electrical hazards. Such as grounding rods, wires, and clamps.

• Solar Charge Controller (for off-grid systems): Regulates the voltage and current coming from the solar panels to the battery bank.

• Battery Bank (for off-grid or hybrid systems):Stores the solar energy for use when the sun isn’t shining.

• Grid Disconnect or Transfer Switch: Disconnects the system from the grid during maintenance or emergencies.

• Monitoring System: Tracks system performance and energy production in real time.

• Electrical Wiring and Conduits
  DC Wire: Connects the solar panels to the inverter.
  AC Wire: Connects the inverter to your home’s electrical system.
  Conduit: Protects the wires (can be PVC or metal).

• Fasteners and Tools: Screws, bolts, and nuts for securing panels. Tools like drill, wrench, measuring tape, level, wire cutters, and safety gear like gloves and harnesses.

We give detailed information and advice about the different installation systems, grid systems, and inverter selection in this post, which can be read for more information.

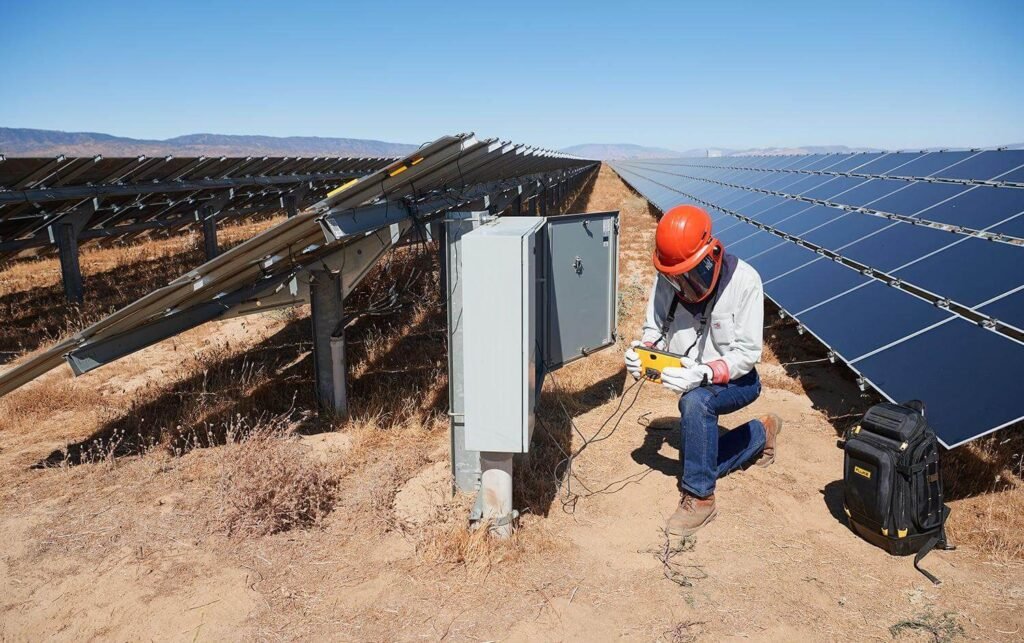

6.3 Install Solar Panels

Once the mounting system, inverter, grid system, and solar panels have been selected according to your specific needs, the installation process can begin.

6.3.1 Prepare the Installation Site

• Clear the site: Ensure that the roof (for residential installations) or ground (for power plants) is clean, debris-free, and structurally ready to support the solar panels.

• Mark installation points: For rooftop installations, mark where the mounts will be attached to the roof’s rafters. For ground-mounted systems, survey the land and mark where the foundation or racking will be placed.

6.3.2 Install the Mounting System

• Attach roof or ground mounts: For residential systems, use roof hooks or brackets that attach securely to the rafters. For power plants, install the ground-mounted racking system using driven piles, concrete footings, or screw foundations.

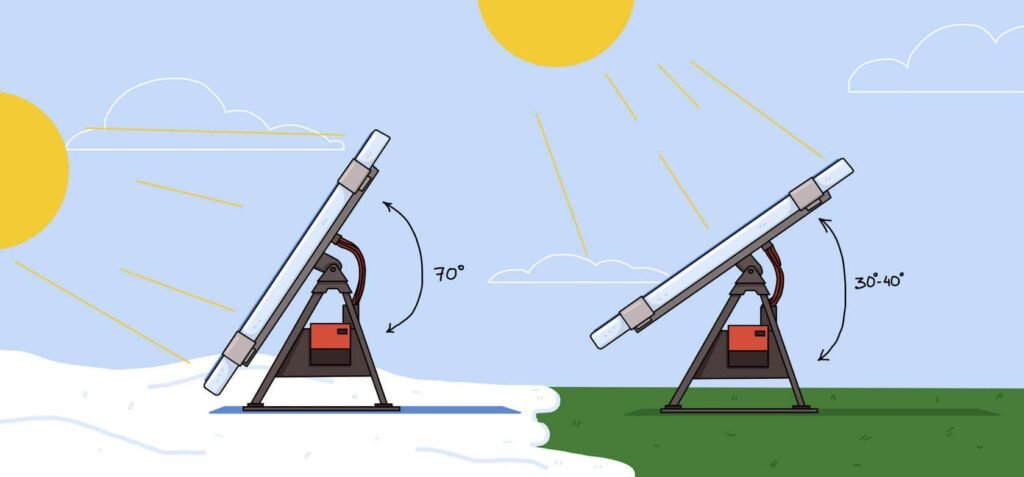

• Ensure correct angle: Adjust the mounting system to tilt the solar panels at the optimal angle (typically between 15-40 degrees), depending on geographic location to maximize sunlight exposure.

6.3.3 Install the Solar Panels

• Secure the panels: Once the mounting system is in place, install the solar panels by securing them with bolts or clamps to the racking or mounting system. Ensure the panels are evenly spaced and aligned for maximum efficiency.

• Connect the panels: Link the solar panels in a series (for higher voltage) or parallel (for higher current) configuration based on your system design. Ensure the connections are tight and secure.

6.3.4 Install the Inverter

• Choose inverter location: Install the inverter near the main power supply for easier access. It can be installed indoors or outdoors, but ensure it’s protected from the elements (for outdoor setups).

• Connect to panels: Wire the solar array to the inverter. In a string inverter system, all the solar panels will be connected to the single inverter. For power plants, multiple inverters or centralized inverters may be used depending on the size of the installation.

6.3.5 Electrical Wiring and Grid Connection

Wire to the main electrical panel: Connect the inverter to the main electrical panel of the home or power plant’s electrical infrastructure. For homes, this allows the generated solar energy to be used by the household or fed back into the grid.

• Install safety devices: Include appropriate safety measures, such as a fuse box or circuit breaker, and ensure proper grounding of the system to prevent electrical faults.

• Grid-tie systems: For grid-tied installations, connect the system to the utility grid. Power plants will require high-voltage transformers and substations to step up the voltage and feed electricity into the grid.

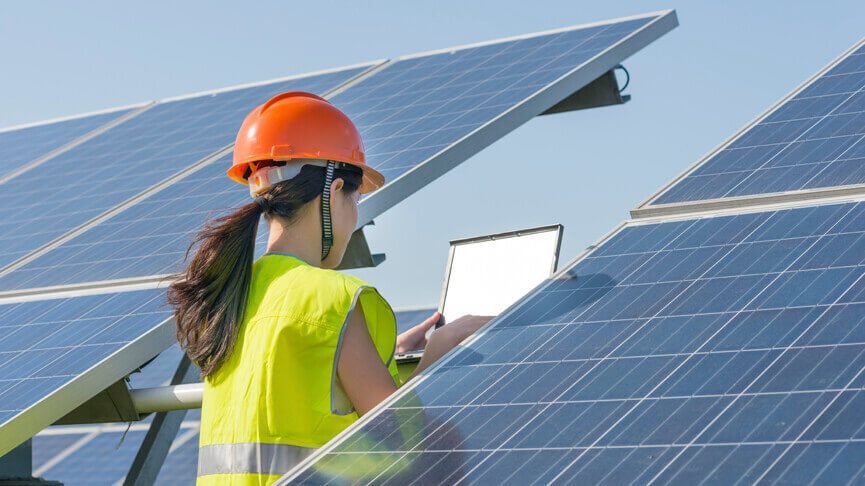

6.3.6 System Testing and Activation

• Test the system: Before final activation, conduct a comprehensive test of the system to ensure all components are functioning correctly. Check the wiring, inverter performance, and panel output.

• Grid approval: For both residential systems and power plants, obtain final approval from the utility company before officially connecting the system to the grid.

• Activate the system: Once approval is granted, turn on the system and start generating solar energy. You can monitor performance through the inverter’s display or a monitoring system.

7. Importance of Using Electrical Conduit in Solar Panel Systems

• Safety: Conduits shield electrical cables from damage caused by exposure to weather, UV radiation, and physical impacts, ensuring the safety of the system.

• Durability: Solar panel installations are often exposed to harsh environments. Conduits, particularly those made of durable materials like PVC, extend the lifespan of the wiring by protecting it from corrosion, moisture, and heat.

• Compliance: Electrical conduits help meet code regulations, such as those set by the National Electrical Code (NEC), ensuring the solar installation adheres to safety standards.

• Organization: Conduits help neatly organize and route cables, improving the overall appearance and accessibility of the system for maintenance and future upgrades.

• Electrical Efficiency: By protecting the integrity of the wiring, conduits reduce the risk of electrical faults, short circuits, or power loss, contributing to a more efficient solar power system.

FAQs

1.Do solar panels work in cold weather?

Yes, solar panels work well in cold weather. They are commonly designed to operate efficiently in temperatures ranging from -40°F to +185°F.

Despite the shorter daylight hours in winter, which can decrease overall energy production, the efficiency of converting sunlight to electricity tends to be higher in cold weather. This is because solar panels are less likely to overheat, which can occur in hot weather and reduce efficiency.

Snow can temporarily block sunlight but doesn’t impact the panels’ long-term durability or efficiency.

2.What are the maintenance requirements for solar power systems in harsh environments like deserts or coastal areas?

Deserts: Dust accumulation can reduce panel efficiency, requiring frequent cleaning. High temperatures may affect panel performance, so systems may need cooling solutions or special temperature-resistant panels.

Coastal Areas: Salt corrosion is a major concern, so panels and mounting systems should be corrosion-resistant (e.g., using stainless steel or coated materials). Regular maintenance is crucial to prevent salt buildup on panels.

3.Will the panel performance degrade over time?

Yes, solar panel performance does degrade over time, but typically at a slow rate. This degradation is known as the degradation rate and is generally around 0.5% to 1% per year for most panels. Over a 25-year lifespan, this means a solar panel may lose about 10-20% of its original efficiency.

Factors influencing degradation include:

• Exposure to UV rays and extreme weather conditions (heat, snow, rain).

• Manufacturing quality—higher-quality panels often have lower degradation rates.

• Environmental conditions, such as dust, salt air (in coastal areas), or debris accumulation, can affect long-term performance.

• However, many panels come with warranties guaranteeing 80-90% of their original output after 25 years, ensuring reliability over time.

Using the cable conduit in solar installations enhances both performance and safety, ensuring the long-term reliability of the system.

Ctube offers various types of electrical conduit and fittings, including a specialized solar series designed specifically for solar panel systems. Our Solar PVC Conduit Series, including both rigid and corrugated options, is designed to optimize solar cable management with durability and flexibility.

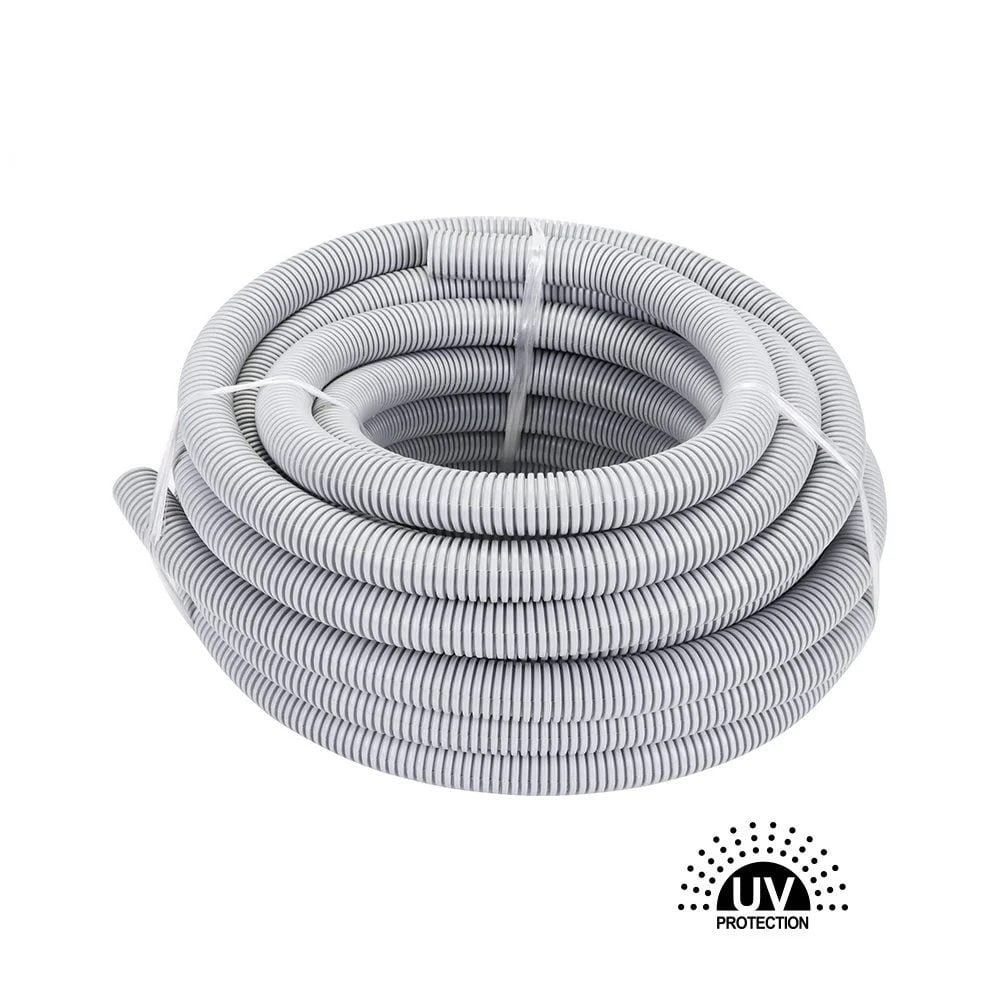

The rigid conduit ensures secure wire routing in solar panel arrays, while the corrugated conduit adapts to varying landscapes and angles, ideal for solar farms and rooftops. We also provide a full range of Solar PVC fittings for seamless, code-compliant connections. Ctube’s Solar PVC systems deliver safety, efficiency, and long-lasting performance for modern solar energy projects.

Upgrade your solar installations with Ctube’s premium Solar PVC conduit and fittings. Get in touch with us now to discover how our solutions can enhance the performance and longevity of your solar projects!
